Autel MaxiDiag Elite MD802 Autel Diagnostic Tool OBD2 MD802

Autel maxiDiag elite MD802 Autel Diagnostic Tool reads and clears trouble codes on either the basic 4 systems ( Engine, Transmission, ABS and airbag ) or other systems, reads and clears trouble codes on engine, transmission , airbag, and ABS failures.

Price: 150
Shipping Fee: 40

Enquiry Now!


Autel MaxiDiag Elite MD802 Autel Diagnostic Tool OBD2 MD802 for All System + DS model: Engine, Transmission, ABS, Airbag +EPB+OIL Service Reset & Electronic modules and support data stream function.

AUTEL MaxiDiag Elite MD802 All System Diagnostic Tool OBD2 Diagnostic Scanner for ALL system+DS model One tool can do it all-reads and clears trouble codes on either the basic 4 systems ( Engine, Transmission, ABS and airbag ) or all the systems, reads and clears trouble codes on engine, transmission , airbag, and ABS failures, quick Erase feature allows all codes to be cleared with the push of a button, live data graphing for the ECU,One button Auto-Scan reads codes in ALL modules and displays them on the screen.

Warranty and Update

Free one year warranty and Lifetime free update online

Multi-Language :

English, German, Spanish, Portuguese, Dutch, French, Italian.Korean, Japanese, Russian ,Polish,Swedish

How to change display language?

The original language is English. If you need other language, pls tell us serial number of device, we will help you authorize other language.

All Systems Diagnoses

Available for all kinds of vehicle systems on the ECUs
The diagnostic tool able to access to vehicle systems and subsystems, such as body, chassis, powertrain, network and etc., to perform a comprehensive scanning on ECUs to locate fault systems and retrieve DTCs.
1. Retrieve ECU information of tested control units including unit type, version numbers   and   other specifications;
2. Read all kinds of DTCs from vehicle's control systems to locate problem areas, and offer possible solutions;
3. Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
4. Live data of each parameter item displayed in analog, text, waveform graph, digital, or   full screen   display modes.

Oil Reset Services

Performs reset for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and   turn off the warning light.

EPB reset service

Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

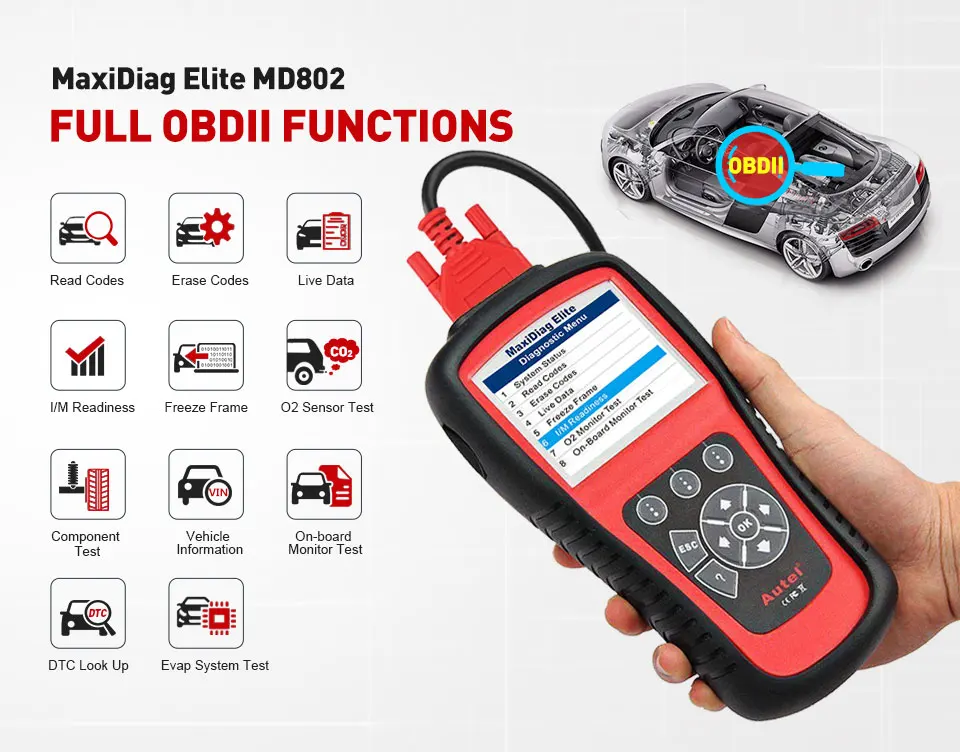

Varies OBDII Functions

1.Reads current, pending, permanent trouble codes stored in computer memory;

2.Erase those fault codes and turn off the malfunction indicator light (MIL);

3.Reads live data to show the real time parameter data of computer module(s);

4.Reads freeze frame data for viewings of details at the moment of a fault code detected;

5.Retrieves the I/M readiness status to have an engine test for state emissions program;

6.Performs oxygen (O2) sensor test to check whether the fuel efficiency is on   standard;
7.Performs on-board monitor test to determine if each on-board monitor is OK;

8.Supports component test to initiate a leak test for the vehicle's EVAP system;

9.Retrieve vehicle information of VIN, CINs, CVNs, or in-use performance tracking;

10.Built-in DTC helps you quickly search for code definitions without Google.

Support vehicles as Nissan/Infiniti,/oyota/Lexus/Scion/Honda/Acura/Subaru/Mitsubishi/Suzuki/Isuzu/Hyundai/Kia/Daewoo/Mazda,and for Holden/Bens/Smart/Sprinter/Maybach/BWM/Mini/VW/Seat/Skoda/Audi/Pel/Land Rover/Aguar/Volvo/Porsche/Saab/EU Ford/Vauxhall/Ford/GM/Chrysler/Peugeot/Citroen/Renault/Dacia/Fiat/Abarth/Alfa-Romeo/Maserati/Lancia/Au Ford/Holden.


1. Able to quickly read and clear codes for most vehicles from 1996 till now.
2. One button auto-scan reads codes and displays them on the screen.
3. Quick erase feature and allows all codes to be cleared by a button.
4. Live data graphing for the ECU.
5. One tool with all function,reads and clears trouble codes on engine, transmission , airbag, and ABS failures.
6. Global OBD II available for vehicles (US, Asian, & European).
7. Turns off engine, transmission, ABS, and airbag warning lights for most USA Domestic, Asian, and European vehicles.
8. Supports all 10 test modes of the latest J1979 OBD II test specs, including Read Codes,Erase codes, Live Data, Freeze Frame, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, and Vehicle Information.
9. Enhanced OBD II Mode 6.
10. OBD II code tips guide technicians to the root cause of trouble codes faster.
11. Data graphing.
12. View freeze frame data.
13. USB cable included for product updates.
14. One year of FREE software updates and upgrades included.
15. Prints data via PC-link.

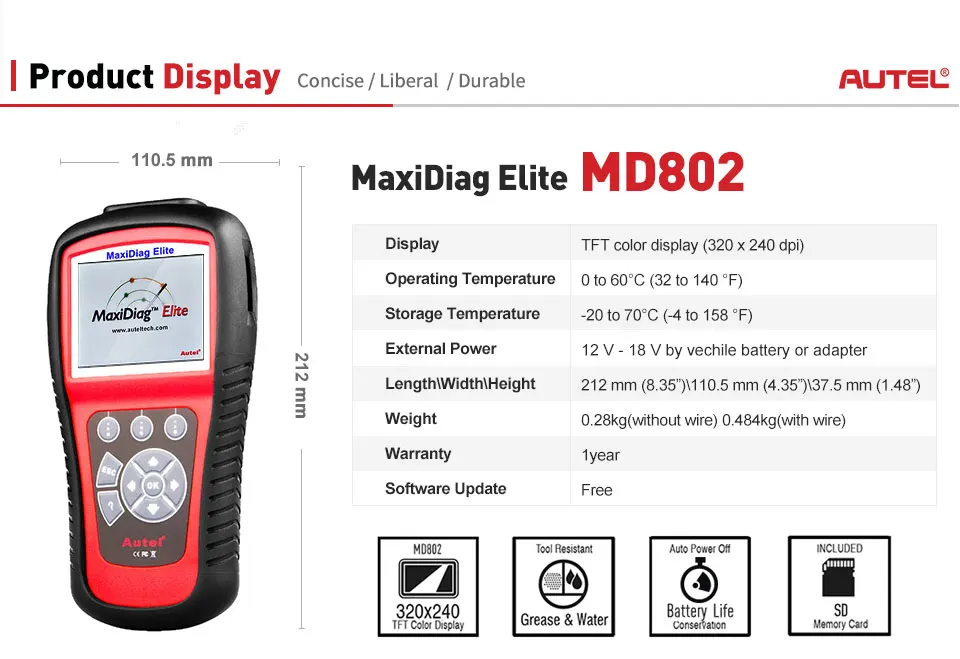

1.Display TFT color display (320 x 240 dpi)
2.Operating Temperature 0 to 60°C (32 to 140 °F)
3.Storage Temperature -20 to 70°C (-4 to 158 °F)
4.External Power 12.0 to 18.0 V power provided via vehicle battery or adapter
5.Length\Width\Height 212 mm (8.35")\110.5 mm (4.35")\37.5 mm (1.48")
6.Weight :Net 0.28kg /0.484kg(with wire)

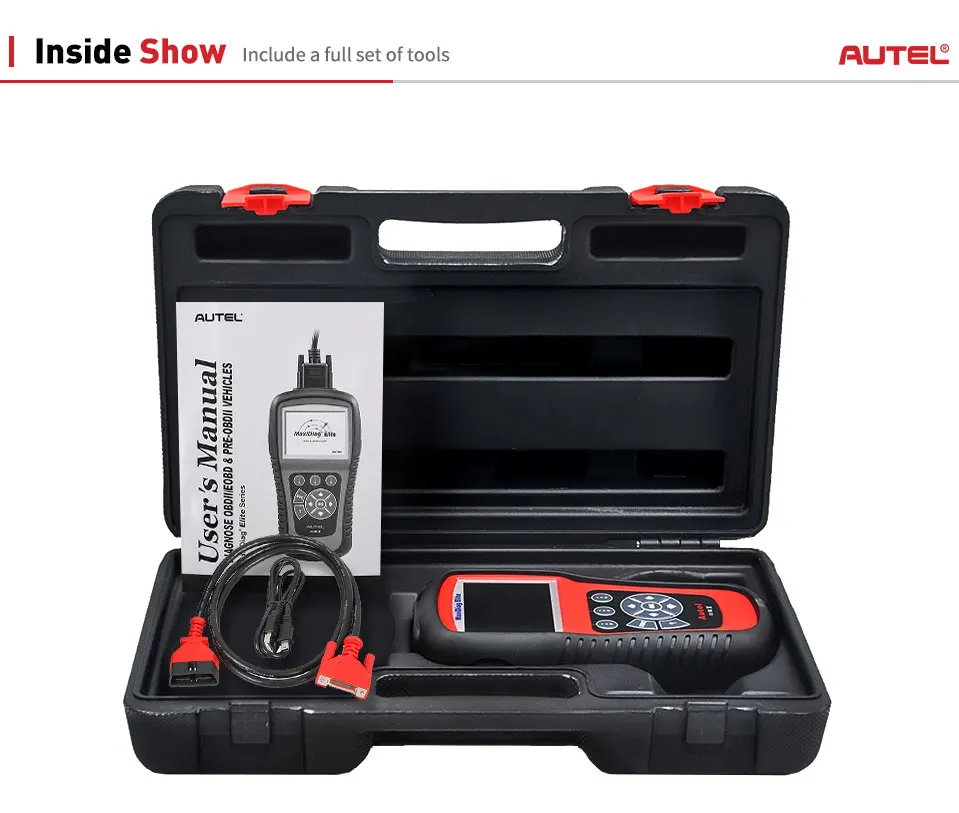

Package list

1. Machine
2. SD Card
3. Main Units
4.USB cables
5. OBDII cables
6.User's Manual
